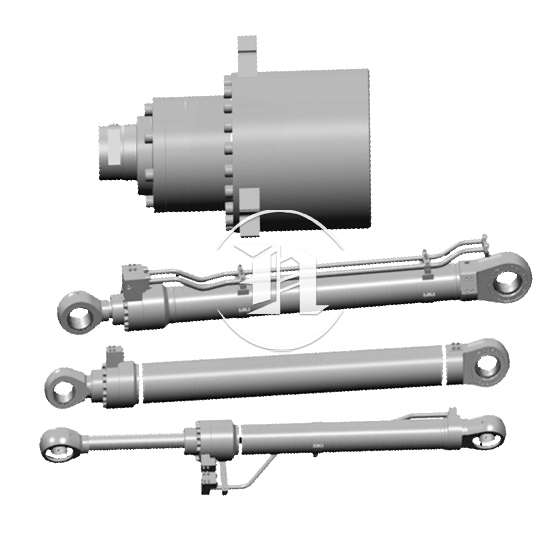

65T~700T medium and large excavators, commonly used hydraulic cylinders can provide:
• Bucket oil cylinder
• Boom oil cylinder
• Stick cylinder
• Tighten the oil cylinder
Tightening oil cylinder
Function:
Control the action of track tensioning
Specifications:
Cylinder diameter 280mm~380mm
Rod diameter 170mm~300mm
Travel distance ≤ 700mm
Thrust:
Maximum 3967.4KN
(Cylinder diameter 380mm/pressure 35MPa)
boom cylinder
Function:
Control the movement of the forearm
Specifications:
Cylinder diameter 210mm~360mm
Rod diameter 145mm~260mm
Travel distance ≤ 2600mm
Thrust:
Maximum 3560.8KN
(Cylinder diameter 360mm/pressure 35MPa)
boom cylinder
Function:
Control the lifting action of the boom
Specifications:
Cylinder diameter 200mm~420mm
Rod diameter 140mm~300mm
Travel ≤ 3500mm
Thrust:
Maximum 4846.6KN
(Cylinder diameter 420mm/pressure 35MPa)
Bucket Cylinder
Function:
Control the movement of the excavator bucket
Specifications:
Cylinder diameter 200mm~360mm
Rod diameter 140mm~260mm
Travel ≤ 2500 mm
Thrust:
Maximum 3560.8KN
(Cylinder diameter 420mm/pressure 35MPa)
