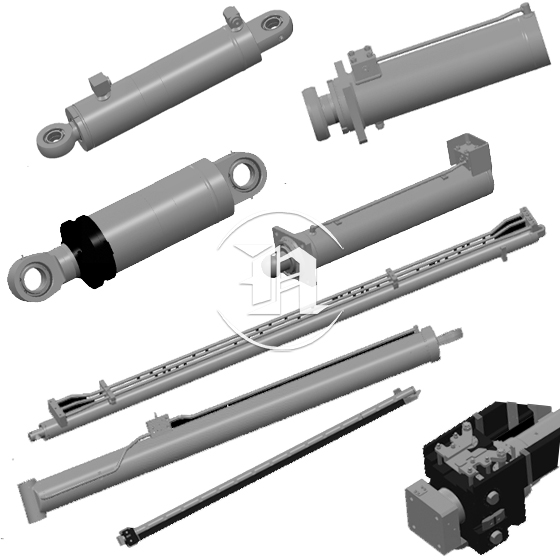

steering cylinder
Function:
Steering system for crane chassis tires
Specifications:
Cylinder diameter ranging from 63mm to 200mm
Rod diameter ranging from 36mm to 140mm
Stroke ≤ 1000mm
Stress
Maximum 35MPa
Counterweight cylinder
Function:
For the installation of counterweights
Specifications:
Cylinder diameter ranging from 85mm to 320mm
Rod diameter ranging from 55mm to 180mm
Stroke ≤ 1500mm
Stress
Maximum 35MPa
Outrigger extension cylinder
Function:
Extend the leg cylinder horizontally
Specifications:
Cylinder diameter 50mm~75mm
Rod diameter ranging from 25mm to 55mm
Stroke ≤ 2500mm
Stress
Maximum 35MPa
Suspension cylinder
Function:
Shock absorption system for crane chassis
Specifications:
Cylinder diameter ranging from 85mm to 180mm
Rod diameter 50mm~100mm
Stroke ≤ 300mm
Stress
Maximum 35MPa
Outrigger cylinder
Function:
Support the weight of the entire equipment during crane lifting operations
Specifications:
Cylinder diameter ranging from 70mm to 360mm
Rod diameter ranging from 45mm to 320mm
Travel distance ≤ 800mm
Stress
Maximum 42MPa
Telescopic hydraulic cylinder
Function:
Realize the linear telescopic motion of the boom
Specifications:
Cylinder diameter ranging from 75mm to 360mm
Rod diameter ranging from 50mm to 320mm
Stroke ≤ 22000mm
Stress
Maximum 42MPa
luffing cylinder
Function:
The main driving force for lifting is to achieve the up-and-down pitching rotation of the boom
Specifications:
Cylinder diameter ranging from 100mm to 560mm
Rod diameter ranging from 50mm to 480mm
Stroke ≤5000 mm
Stress
Maximum 36MPa
